Still Spirits Create+ Threaded Adapter Set
The Still Spirits Create+ Threaded Adapter Set converts a DN40 (or 1 ½ " BSPP) threaded connection to a 2" tri-clamp connection. The Threaded Adapter Set allows you to convert your existing Still Spirits Alembic or T500 distilling setups to connect to 2" tri-clamp accessories.
Features
-
Convert from DN40 (or 1 ½ " BSPP) threaded connection to 2" tri-clamp connection.
-
Connect to 2" tri-clamp distilling accessories
-
304 grade stainless steel construction
-
High temperature resistant food grade silicone
-

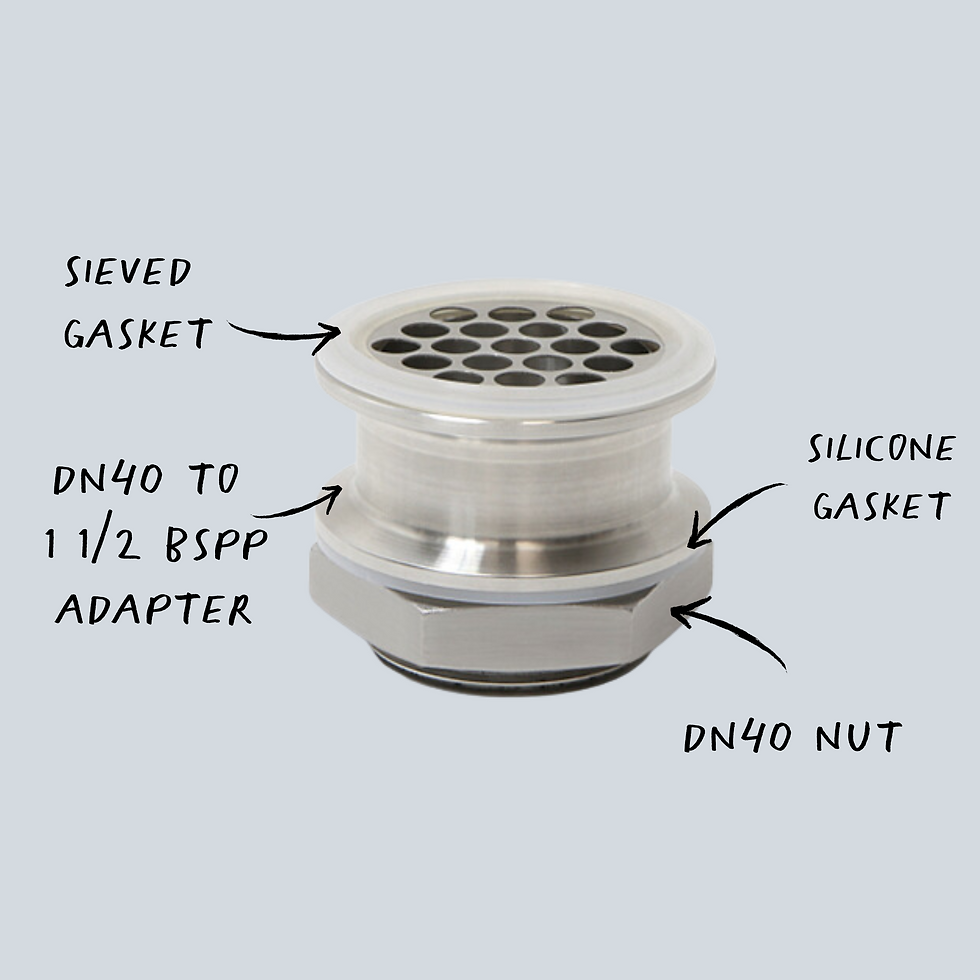

Includes
- DN40 Nut
- Sieved Gasket
- Silicone Gasket
- 2" Tri-Clamp to DN40 Threaded Adapter
Specifications
-
Packaging Dimensions: 80mm x 80mm x 65mm
-
Weight: ~400g Approx.
NOTE: The Threaded Adapter Set is designed primarily for small to medium-sized distilling setups that do not have heavy, off-centre attachments. When used with the Still Spirits Boiler 25 L lid or Alembic Dome, it is reasonably flexible and is sturdy enough to fit components within the following specifications:
A total column & condenser height up to 1.1 m (3.6 ft) from the boiler lid or dome.
A total column & condenser weight up to 11 kg (24 lbs), including up to 2 kg lbs) off-centre weight from a swan neck, lyne arm, or condenser running in parallel with the column and offset up to 160 mm (6") to the main column.
Note: The Create + Threaded Adapter Set is only suitable for use with Still Spirits Alembic Copper Condensers sold from 2019 onwards.
-
